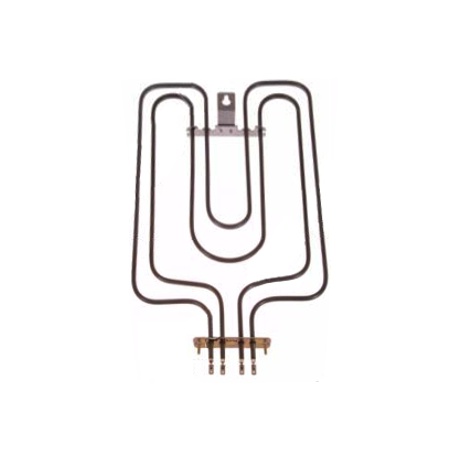

Mora horné 1850W/750W, 465 ohrievacie teleso

Nový typ, náhrada za 628790000.

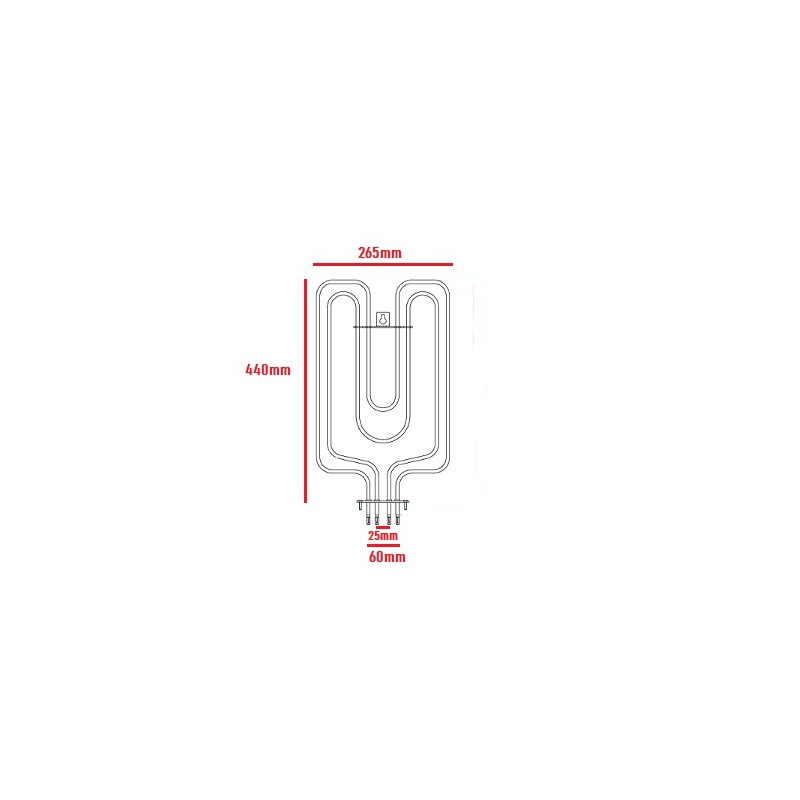

- šírka telesa: 265mm,
- dĺžka telesa po prírubu: 440 mm,
- opierka šírka / výška (výška sa udava len pri profiloch): 30/30mm,
- rozmery príruby (výška/šírka): 16/100mm,
- rozteč kontaktov: 60/25mm,
- dĺžka kontaktov od príruby vrátane konektorov: 50mm,
- rozteč uchytenia (s - skrutka / o - otvor na skrutku):86/s,
- výkon (W) / napätie (V): 750+1850/230.

Vhodné pre:

3476.6K00 A3476.6K00 186106 3472.1U00 ECDM335W 186170 3430.1G70 GEM240W 186248
3460.1G70 GEM440W 186261 2486.1G63 GKM240W 186264 2489.1G63 GKM440W 186268
3484.1G60 GCM440W 186270 3435.1U00 ECDM146W 186308 2460.10M2 245X 186312
358F.10 EC57126AW 186367 3524.10 E52103AW 186368 252C.62 KN52260IBR 186371
252C.12 KN52260IW 186372 252C.12 KN52190IW 186373 252G.63 MKN52103FBR 186374
252G.13 MKN52103FW 186375 352C.10 MEC52160FW 186381 255D.12 K55303IW 186385
252D.11 K52121AW 186387 258D.11 K57121AW 186388 3522.10 E52121AW 186389
352B.10 EC52121AW 186390 358G.10 EC57351AW 186391 252C.12 MKN52103FW 186400
258C.12 MKN57126FW 186401 258D.12 MK57329FW 186402 3524.10 ME52103FW 186404
3583.10 ME57229FW 186405 352A.10 MEC52102FW 186406 358E.10 MEC57329FW 186408
355C.10 MEC55103FWK 186409 258D.12 K57322AW 186414 255C.12 KN55101AW 186415
358F.10 EC57322AW 186424 258H.13 K57322AW 186430 3526.10 55010 186436
3526.10 E52103FW 186436 352E.10 EC52103FW 186437 352E.10 75110 186437
252C.12 MKN52102GW 186460 252C.62 MKN52102GBR 186461 252D.12 MK52160GW 186462
255C.12 MKN55102FW 186467 255C.12 MKN55103GW 186468 258C.12 MKN57102FW 186469
258C.12 MKN57103GW 186470 258C.12 MKN57120GW 186471 258C.62 MKN57103GBR 186472
258D.12 MK57102GW 186473 258D.12 MK57120GW 186474 258D.62 MK57120GBR 186475
258D.12 MK57302GW 186476 258D.12 MK57320GW 186477 258D.12 MK57320GW1 186478
258D.62 MK57320GBR 186479 258D.92 MK57320GS 186480 3524.10 ME52102GW 186486
3524.60 ME52102GBR 186487 3583.10 ME57103GW 186497 3583.60 ME57103GBR 186498
358B.10 MEC57120GW 186499 358E.10 MEC57120GW1 241200 358H.10 MEC57102GW 241201
358E.60 MEC57120GBR 241202 358E.10 MEC57302GW 241203 358E.10 MEC57320GW 241204
358E.90 MEC57320GS 241205 255D.13 MG552W 241206 255D.13 MF552W 241207
255D.63 MG552BR 241208 3524.10 E52108AW 241209 352E.10 55210 241216
3524.10 55210 241216 252D.12 MK52102FW 241225 255D.12 MK55103GW 241227
355A.10 MEC55203GW 241230 252C.12 MKN52101GW 241232 355G.10 EC55129IW 241233
3554.10 E55129IW 241234 255H.13 K55129 IW 241236 252H.13 K52103 IW 241237
252E.12 KSX531EW 241244 3528.10 ESX541EW 241245 352A.10 VSX541EW 241246
258D.12 KHH40996WE 241254 258D.62 KHH40996BE 241255 3521.10 CP561STE 241256
352A.10 CVP561W 241257 255C.12 KN55102IW 241258 3554.10 ACEM560W 241267
352A.10 ACV560W 241268 355F.10 ET309-C 241274 355A.10 EC55301AW 241276
255D.12 K55303IW 241278 3582.10 E57121AW 241287 355E.10 75210 241289
252F.13 K52101IW0 241294 252F.13 K52290IW0 241295 252F.63 K52101IBR0 241297
252F.63 K52290IBR0 241298 252H.13 K52101IW 241300 252H.13 K52290IW 241301
252H.63 K52101BR 241303 252H.63 K52101IBR 241303 252H.63 K52290IBR 241304
3524.10 E52290IW 241311 3524.60 E52290IBR 241312 252D.13 K52290IW1 241315
252D.63 K52290IBR1 241316 3521.10 299WH 241322 255D.82 MK55103GX 241326
255D.82 K55303IX 241327 356A.10 EC55101AW 241328 355A.10 EC55101AW 241328
355A.80 EC55301AX 241329 352B.10 KEC52120HW 241331 258D.82 MK57320GX 241338
358E.80 MEC57320GX 241339 252C.12 MKN52102FW 241340 3521.10 ME52101FW 241350
252F.12 KSX532EW 241355 3521.10 KE52101HW 241356 258D.12 MK57325GW 241362
258D.62 MK57325GBR 241363 358E.10 MEC57325GW 241364 258D.12 MK57325GW1 241365
258D.12 MK57320GW 241369 252D.62 MK52102GBR 241387 258D.12 GKH507.4E 241389
255D.12 MK55102FW 241394 255D.12 MK55103GW 241395 258D.12 MK57102FW 241396
258D.12 MK57120GW1 241397 258D.62 MK57103GBR 241398 252D.12 MK52102GW 241401
258D.12 MK57103GW 241402 258D.12 MK57103GW 241403 258D.12 MK57120GW 241412
258
